Drilling Made Easy

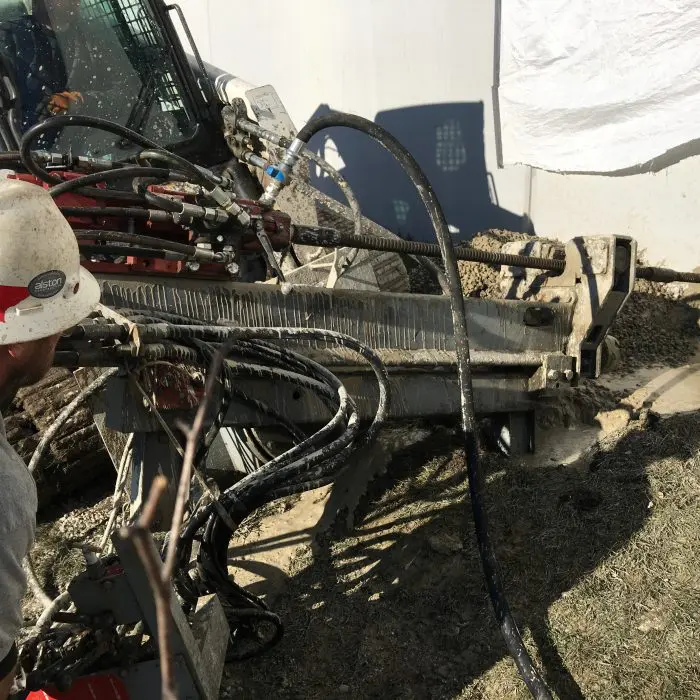

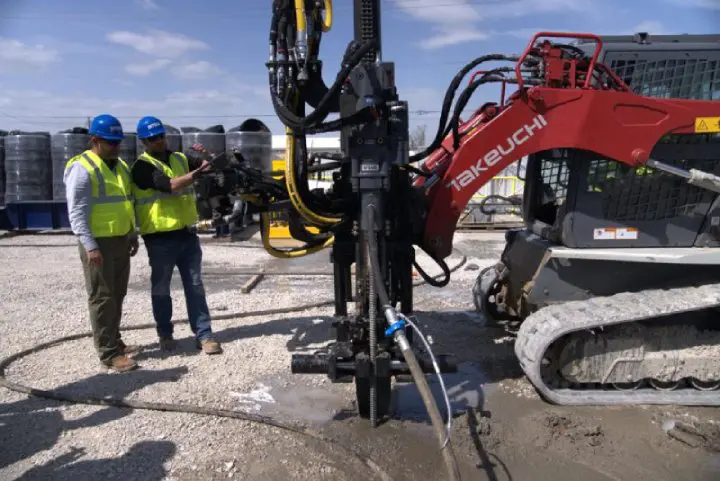

Skid steer loaders have long been a staple in the construction industry due to their compact size, maneuverability, and powerful performance. Now, with the addition of skid steer mounted WORD Rock Drills, your skid steer can become a formidable drilling machine for a wide range of applications.
Our skid steer mounted WORD Rock Drills are expertly designed and manufactured to provide reliable and efficient drilling solutions. Whether you are working on projects involving micropiles, tiebacks, soil nails, or other drilling applications, these attachments deliver outstanding results.
Skid Loader Feed System Rental Specifications
SS540L
FEED SYSTEM
Utilizing universal skid loader plate
FEED SYSTEM DETAILS
- Doofor DF540L hydraulic drifter (38 gpm/2500
psi requirement) - WD3000 drill feed with 10’ of travel
- 7,000 lbs push/pull capabilities
- Manual proportional valves
- Mounting brackets to be able to attach from both
sides of drill - Manual centralizer
- Lateral movement by cylinder 90/20 degree
standard w/feed ext
UNIT ACCESSORIES
- 2”-8” Hydraulic Clamp
- Manual stabilizer kickstands
- Energy chain
- Nitrogen Charge Kit
- Shipped on a custom shipping platform, including a job box for accessories
PHYSICAL CHARACTERISTICS
- Transport Length: 15 ft
- Total Length (End of Feed to Stinger): 15 ft
- Feed Length: 150”
- Width: 60”
- Height: 60”
- Feed System Weight: 3500 lbs
- Shipping Weight: 4300 lbs
HYDRAULIC FLOW/PRESSURE RANGE:
- Minimum: 38 GPM @ 2500 PSI
CONTROLS
- Manual
- Rotation
- Feed
- Lift
- Feed extend
- Auxiliary
DRIFTER DETAILS
- Doofor DF540L
SPECIFICATIONS
- Rotation Torque: 372-719 lb/ft
- Rotation Speed: 250 rpm
BAR & BIT SIZES
- Installs bar up to 2” and up to 4” bit diameter
AVAILABLE STRIKER BARS
R32, R38, T40, R51, T52
In addition to our rental options we offer other skid loader drifters and accessories for purchase. Click here for our equipment sales brochure.
Why Choose Intech Skid Steer Attachments
One of the key advantages of our skid steer mounted WORD Rock Drills is their seamless integration with your existing skid steer loader. With a simple attachment process, you can transform your skid steer into a versatile drilling platform in no time. The hydraulic power from your skid steer’s system drives the feed system and drifter, ensuring optimal performance and productivity.
Another notable feature of our skid steer mounted WORD Rock Drills is their adaptability to different project requirements. The attachments offer versatility in terms of mast length, enabling efficient drilling operations and accommodating various project specifications. With the capacity to install different types of hollow bars, you can tackle projects of different scales and complexities with ease.
