The Magnacore® Self Drilling Anchor (SDA) from Intech Anchoring Systems is designed to address challenging soil conditions where traditional micropiles may not be suitable.

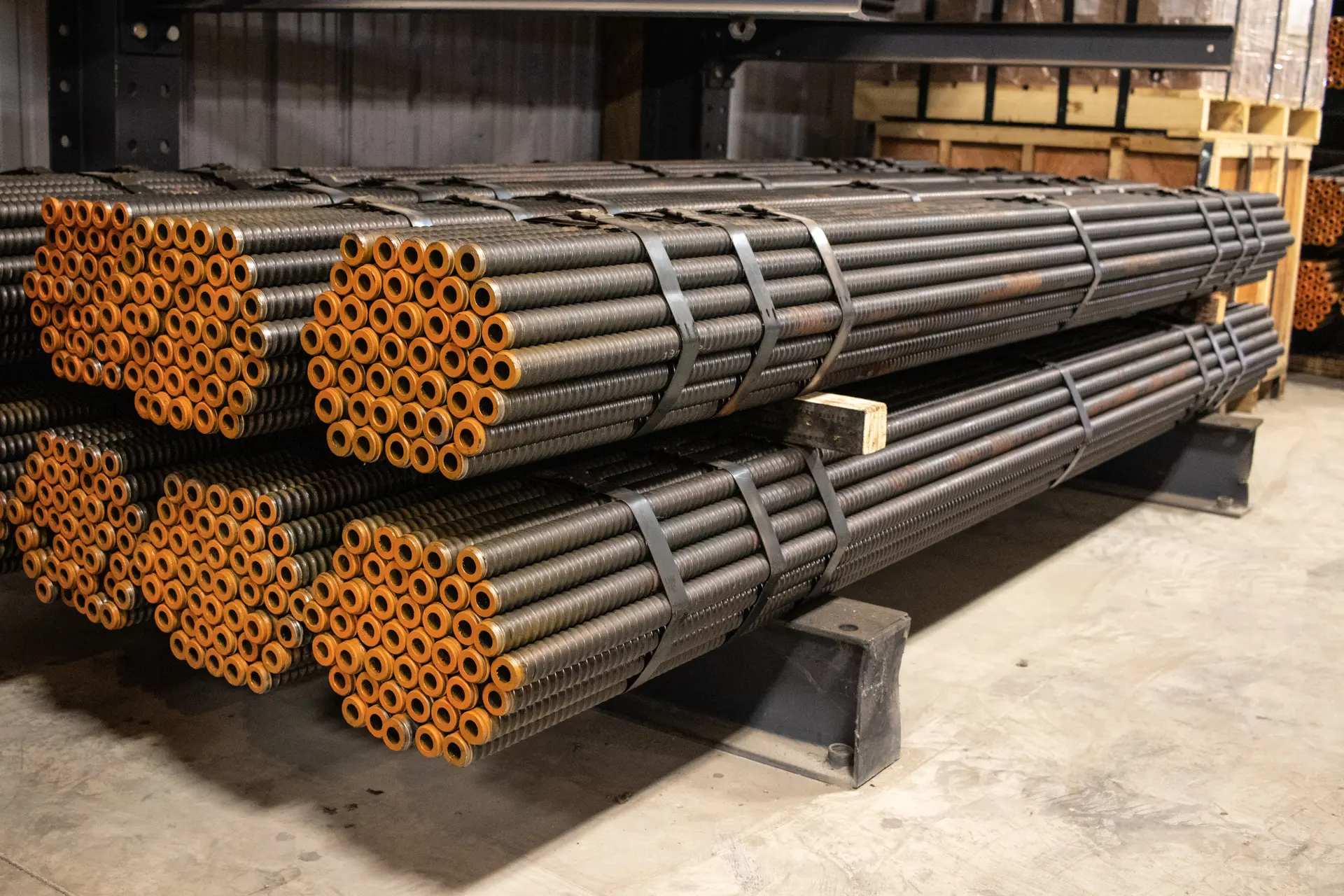

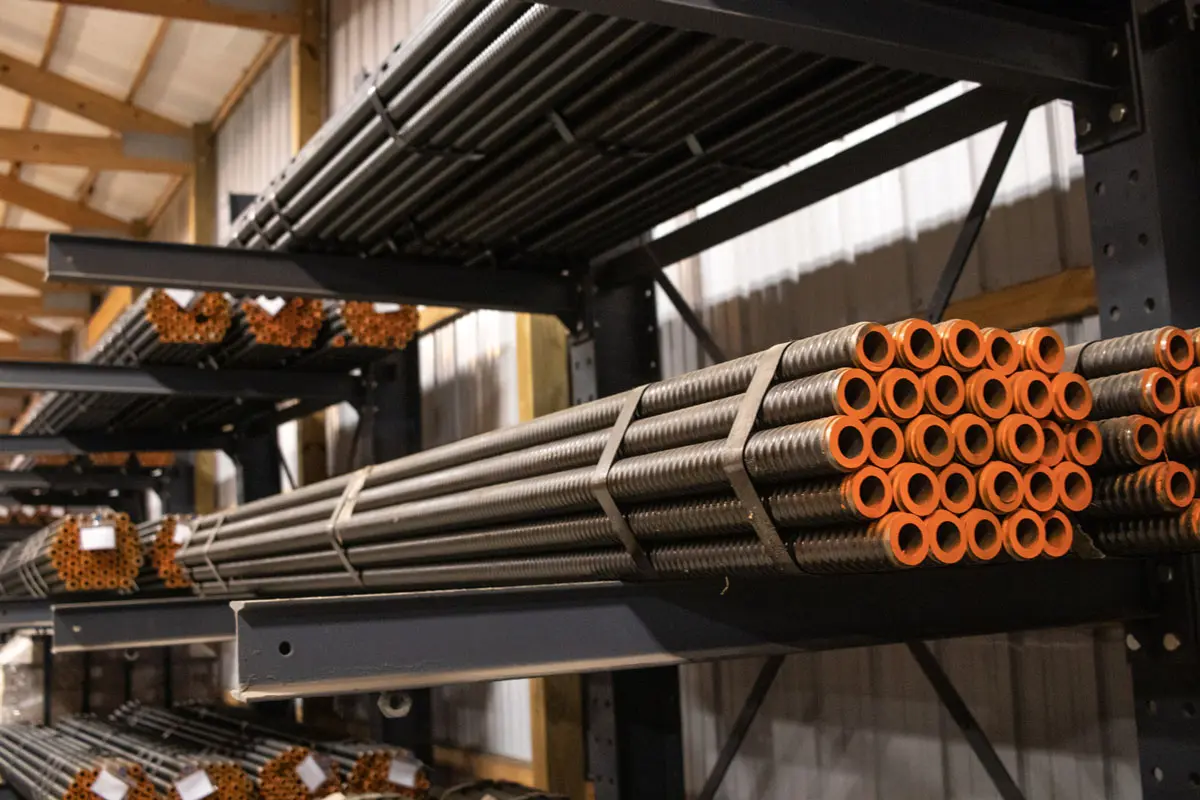

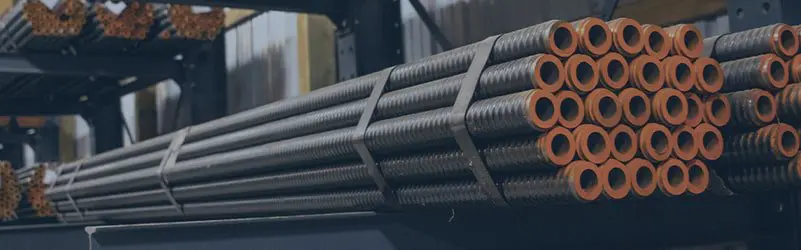

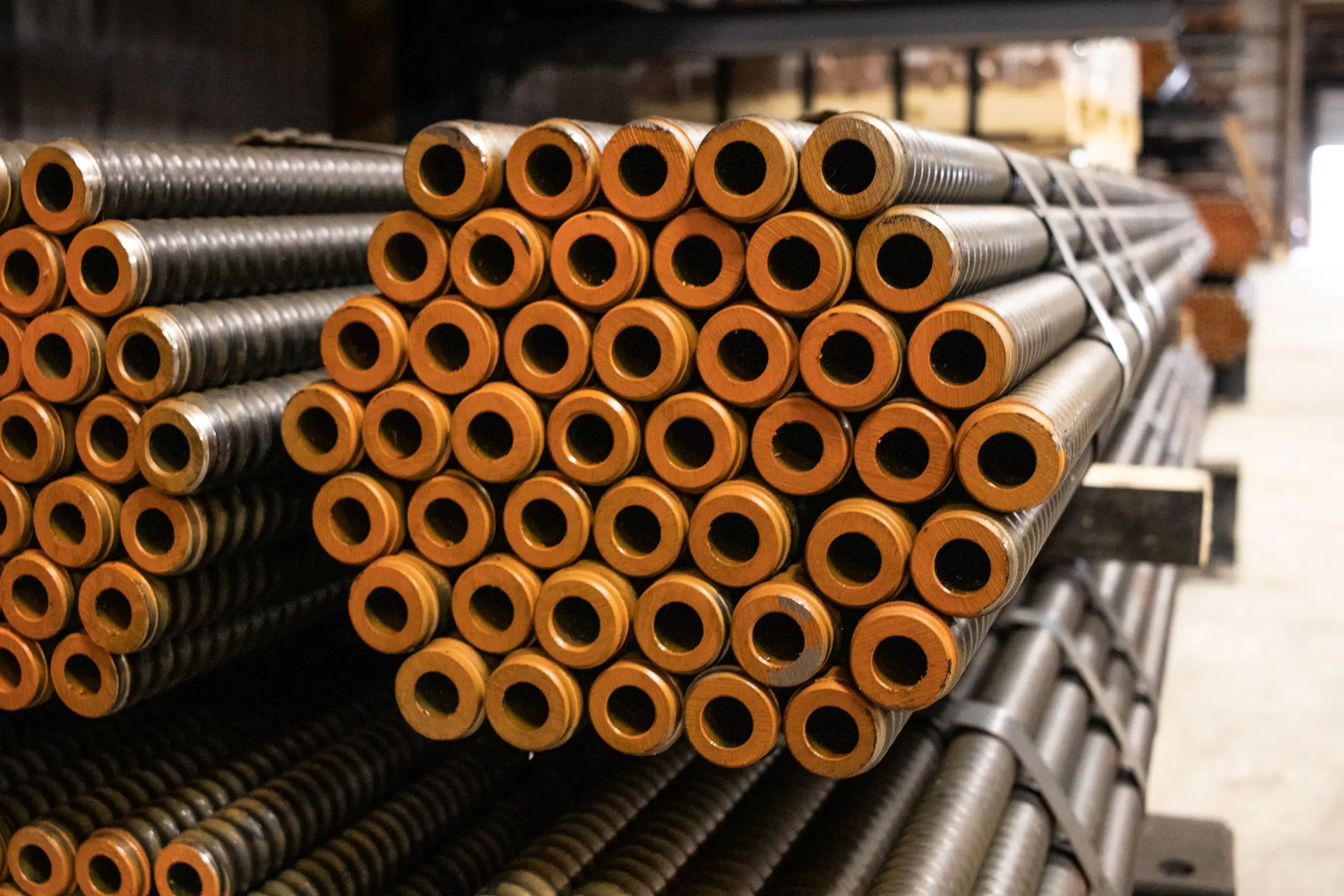

Magnacore has a full line of hollow bar anchor rods to meet your project’s needs including:
- R32
- R38
- R51
- T40
- T52
- T76
Our standard stock length of bar are 4.92 ft (1.5 m) and 9.84 ft (3 m). The standard bar is non-galvanized. Galvanized bars can be ordered custom.
Special orders can be placed for custom bar lengths, sizes, and bit sizes. Request more information from your BDM – or contact us here.
Hollow Bar Micropiles Used In:
- Unstable Soil
- Limited Access / Overhead Clearance
- High-Lateral Load or Tension Requirements
Installation System Accessories:
- Couplers
- Hex Nuts
- Drill Bit Adapters
- Spherical Nuts
- Sleeved Pipe
- Centralizers
- Bearing Plates
- Bevel Washers
Magnacore Hollow Bar Specifications
| Bar Type | Outer Diameter | Inner Diameter | Area | Ultimate Load (Pu) | Yield Load (Py) | Ultimate Stress (Fu) | Yield Stress (Fy) | Weight |
|---|---|---|---|---|---|---|---|---|
| MCR32/15 | 1.26 in (32 mm) | 0.59 in (15 mm) | 0.79 in² (510 mm²) | 81 kips (360 kN) | 63 kips (280 kN) | 102 ksi (706 MPa) | 80 ksi (549 MPa) | 2.69 lbs/ft (4.00 kg/m) |
| MCR38/18 | 1.50 in (38 mm) | 0.71 in (18 mm) | 1.17 in² (752 mm²) | 124 kips (550 kN) | 101 kips (450 kN) | 106 ksi (731 MPa) | 87 ksi (598 MPa) | 3.96 lbs/ft (5.90 kg/m) |
| MCR51/29 | 2.01 in (51 mm) | 1.14 in (29 mm) | 1.78 in² (1146 mm²) | 180 kips (800 kN) | 142 kips (630 kN) | 101 ksi (698 MPa) | 80 ksi (550 MPa) | 6.05 lbs/ft (9.00 kg/m) |
| MCT40/20 | 1.57 in (40 mm) | 0.79 in (20 mm) | 1.22 in² (790 mm²) | 121 kips (539 kN) | 97 kips (430 kN) | 99 ksi (682 MPa) | 79 ksi (544 MPa) | 4.17 lbs/ft (6.20 kg/m) |
| MCT40/16 | 1.57 in (40 mm) | 0.63 in (16 mm) | 1.42 in² (917 mm²) | 148 kips (560 kN) | 118 kips (525 kN) | 104 ksi (720 MPa) | 83 ksi (573 MPa) | 4.84 lbs/ft (7.20 kg/m) |
| MCT52/26 | 2.05 in (52 mm) | 1.02 in (26 mm) | 1.92 in² (1236 mm²) | 209 kips (929 kN) | 164 kips (730 kN) | 109 ksi (752 MPa) | 86 ksi (591 MPa) | 6.52 lbs/ft (9.70 kg/m) |
| MCT76/45 | 2.99 in (76 mm) | 1.77 in (45 mm) | 3.89 in² (2510 mm²) | 427 kips (1900 kN) | 337 kips (1500 kN) | 110 ksi (757 MPa) | 87 ksi (598 MPa) | 13.24 lbs/ft (19.70 kg/m) |
Your Trusted Partner For Sdas
Sourced By Geotech Pros Used By Geotech Pros
The Magnacore® Self Drilling Anchor is a hollow bar injection-bore micropile that offers an economical solution in situations such as collapsible soils, areas with large boulders, or other obstructions.The micropile installation process involves a single, top-down operation. The hollow bar serves as the drill string, and a high-pressure, neat cement grout mixture is injected through the bar. The grout mixture acts as both the drilling medium and the reinforcement for the micropile. As the neat grout mix exits through grout ports located at the end of the sacrificial bit, it permeates into the surrounding loose soils.
This combination of injecting the neat grout mix and its subsequent permeation into the adjacent soils forms a competent reinforced grout column. The grout column provides structural support and enhances the load-bearing capacity of the micropile in challenging soil conditions. By using the injection-bore technique, hollow bar eliminates the need for open-hole drilling and allows for efficient installation even in difficult ground conditions.
Magnacore offers an economical and effective alternative for situations where conventional micropiles may encounter difficulties due to specific soil characteristics or obstructions in the ground.
Learn More About Magnacore Applications
Micropiles
In projects with limited access or weak soil conditions, Magnacore micropiles prove to be highly beneficial and suitable for a variety of applications. Micropiles have emerged as a preferred method for stabilizing deep foundations due to their reliability, versatility, and efficiency.
Soil Nails
Soil nails are used in the construction of earth retention systems to provide support in areas requiring deep excavations or where slope stability is a concern. The design of these systems must address factors like movement control, stability during construction, and wall drainage. Magnacore is a suitable option for such projects, as it can be utilized for stabilizing slopes, soldier pile and lagging installations, as well as soil nail applications.
Tieback Anchors
A tieback is a horizontal rod used to reinforce retaining walls for stability. With one end of the tieback secured to the wall, the other end is anchored into the earth with sufficient resistance. By utilizing Magnacore self drilling anchors for tiebacks, you can save time and is more cost effective with the quick, efficient, all-in-one installation.
