High-Capacity Grout Plants & Mixing Equipment for Foundation Projects
RENT CHEMGROUT GROUT PLANTS
Delivered To Your Job Site
Intech Anchoring Systems is an authorized ChemGrout distributor with units in stock and ready to move, available to rent or purchase. Grout production is the bottleneck on most hollow bar and micropile jobs, so waiting weeks on equipment availability is rarely an option once a crew is mobilized.
Our plants deliver high-volume output with continuous mixing, which keeps grout moving to the hole rather than batching between piles. Pick up from our Caseyville yard or let our team handle delivery to your job site, and every unit ships with the hoses, testing tools, and accessories a crew needs to start the same day.
Grout Plant Systems
Diesel-powered colloidal mixing plants built for micropiles, tiebacks, rock anchors, and hollow bar installation, rated to 1,500 psi and 32 gpm, available to rent or buy.
Colloidal mixing is what separates a grout plant from a paddle mixer. A high shear centrifugal pump disperses cementitious material down to its finest particle size, achieving complete particle wetness, which produces a stable grout that resists bleed and pumps consistently through long hose runs. On hollow bar work where grout is the load transfer mechanism, that consistency is the difference between a pile that meets design and one that does not.
Continuous operation matters just as much. Our plants pair a colloidal mixer with a separately agitated storage tank, so one batch is mixing while the previous batch is being pumped. A bridge breaker keeps material feeding into the mixer without hanging up, and a variable speed paddle mixer holds the stored grout in suspension until the pump calls for it.
Applications run well beyond micropiles: rock anchors, tiebacks, soil compaction, rock grouting, void filling, waterproofing, soil anchors, cable bolts, rock bolts, well encasements, contact grouting, and well abandonment. Reference documentation is available in the equipment rental brochure and the equipment purchase brochure.
ChemGrout CG680
High Pressure & Capacity Colloidal Grout Plant
Overview
| Type | Diesel-powered, skid-mounted colloidal grout plant |
| Operation | Continuous mixing and pumping |
| Mixer | 17 cu ft homogenizing colloidal mixer |
| Storage Tank | 17 cu ft agitated storage tank with variable speed, high-efficiency paddle mixer |
| Pump | 2X3X12 high shear centrifugal diffuser-type pump, disperses cementitious material to finest particle size |
| Bridge Breaker | Breaks apart material before entering the colloidal mixer |
| Grout Pump Type | Positive displacement, high capacity, double acting plunger pump connected directly to the storage tank |
| Pressure Washer | Built-in |
Design Notes
- Continuous feed: Grout pump draws straight from the agitated tank, so pumping never stops for a batch cycle
- Particle wetness: High shear dispersion produces stable grout that holds through long hose runs
- Job site cleanup: Built-in pressure washer handles washout without a separate unit
Physical Characteristics
Dimensions, Weight & Pump Specifications
Overview
| Height | 79″ |
| Length | 121″ |
| Width | 60″ |
| Weight | 3,800 lbs |
| Shipping Weight | 4,500 lbs |
Specifications
| Pump Size | 3.5″ x 8″ |
| Maximum Output | 32 gpm |
| Maximum Pressure | 1,500 psi |
Rent ChemGrout
Grout-Ready Equipment On Demand
Renting the CG680 puts a full colloidal plant on your site for the duration of the job without the capital commitment, and every rental unit is available for purchase if it earns a permanent spot in your fleet. The plant delivers continuous mixing and pumping at up to 32 gpm and 1,500 psi, with the diesel-driven DM360 hydraulic pack available when standalone drive power is needed.
Units arrive inspected, serviced, and equipped to run. Nothing has to be sourced locally before the first pile.

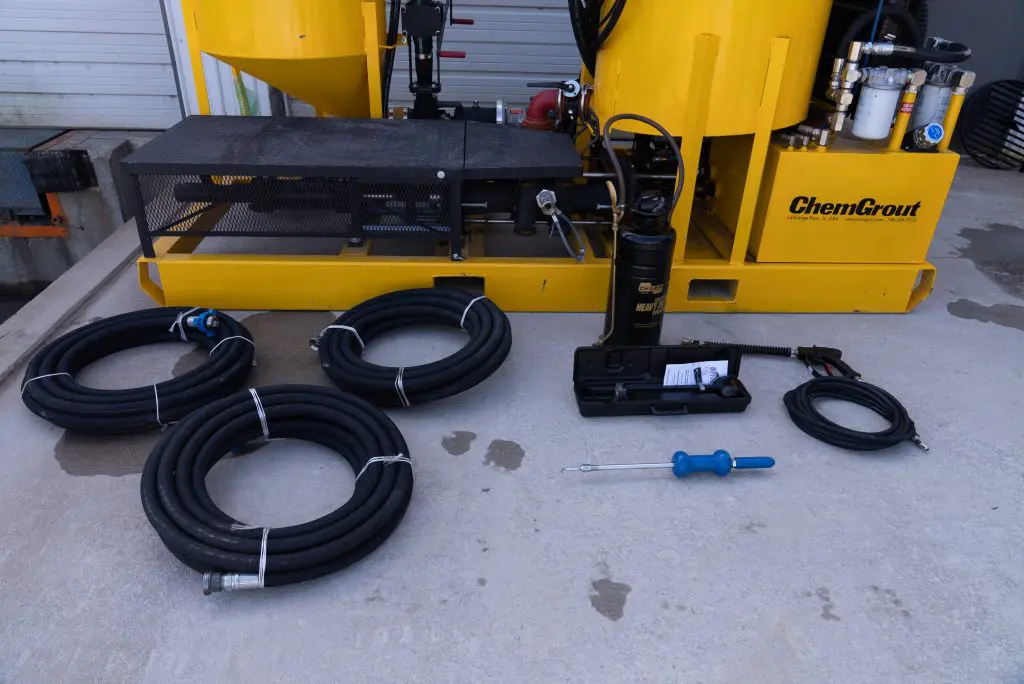

All Rentals Include
- 150′ of high pressure grout hose: Enough reach to stage the plant clear of the drill
- Mud balance: For verifying grout density against mix design
- Slide hammer: Standard testing tooling
- Pressure washer hose and wand: Connects to the plant’s built-in washer

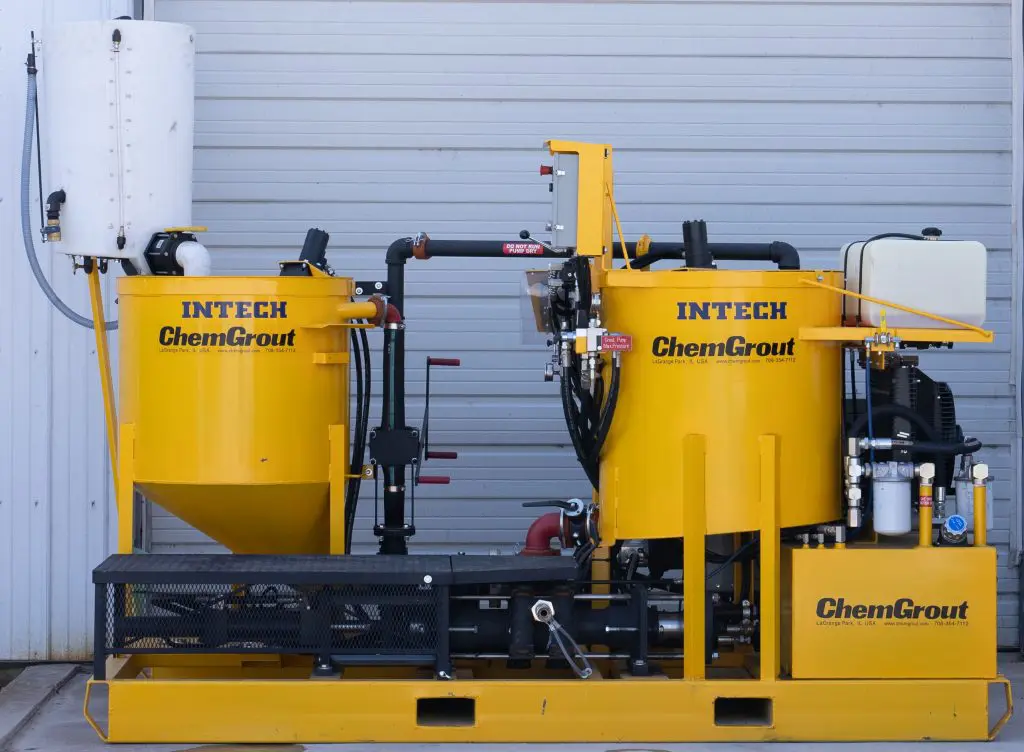

Purchase ChemGrout
A Permanent Plant For Your Fleet
Contractors running grout regularly reach a point where renting stops making sense. As a ChemGrout dealer, Intech supplies the CG680 for purchase with the same support behind it, so parts, service questions, and operator guidance come from the people who sold you the unit.
The CG680 handles micropiles, anchors, tiebacks, and void filling on a rugged diesel platform built for daily job site use, which makes it a practical fleet addition for contractors whose work is consistently grout dependent.
Purchase Considerations
- Utilization threshold: Steady hollow bar or micropile volume usually justifies ownership over repeat rentals
- Trial before buying: Rent the unit on a live job to confirm the fit before committing
- Ongoing support: Parts availability and technical backup through Intech after the sale
Equipment Rental Process
Flexible Delivery Options
- Request Equipment: Submit a request online or contact our team directly to select the right equipment and tooling for your project timeline.

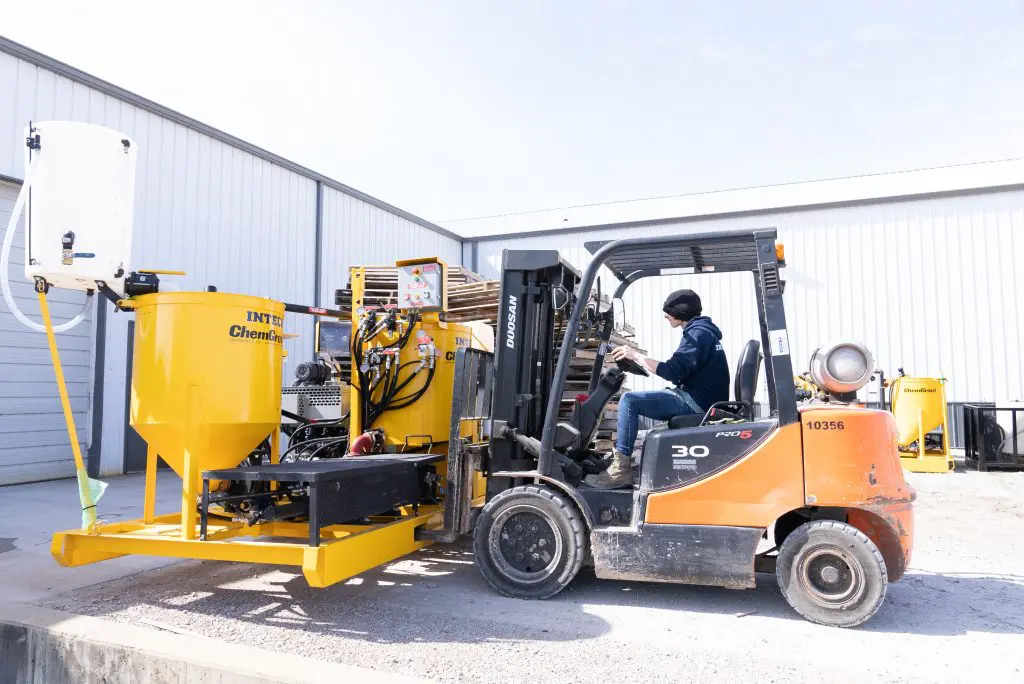

- Coordinate Delivery: Pick up from our Intech yard or let us manage the logistics. We deliver directly to active jobsites, yards, or staging areas nationwide.
- Get to Work: Every rental arrives fully inspected, serviced, and equipped with all necessary operating accessories so your crew can start working immediately.
