Anchor and Helical Pile Installation Equipment

Intech Anchoring is an authorized distributor of the industry’s leading manufacturers of anchor installation tools and equipment. Intech carries a full line of Installation Drive Heads, Torque Monitors, Drive Tooling, and Accessories to install our Helical product line.

Anchor Drive Equipment That Fits Your Projects Needs

Intech Anchoring works with multiple manufacturers, such as PRO-DIG, Eskridge, and Digga, to find the tools that meet the needs of your projects. A lot of providers will talk about offering high-quality equipment. We partner with many different manufacturers because we care about providing the right piece of equipment that fits your unique requirements. We are only interested in finding the best installation equipment for your needs. Making sure your project has the right equipment specific to your project needs will reduce your headaches and boost your productivity.

When you team with Intech Anchoring, you can trust that our product recommendations are OSHA compliant, optimized for your needs, and backed up by our support services.

We support the products we recommend with design and engineering assistance. We take pride in the technical support we provide. Our Team is at your side, to help facilitate and coordinate your equipment needs.

Intech provides installation training so you can proceed with confidence on your next project. You can operate with the peace of mind that comes with knowing that your equipment is going to perform as expected.

Helical Anchor Drives & Installation Rental Kits

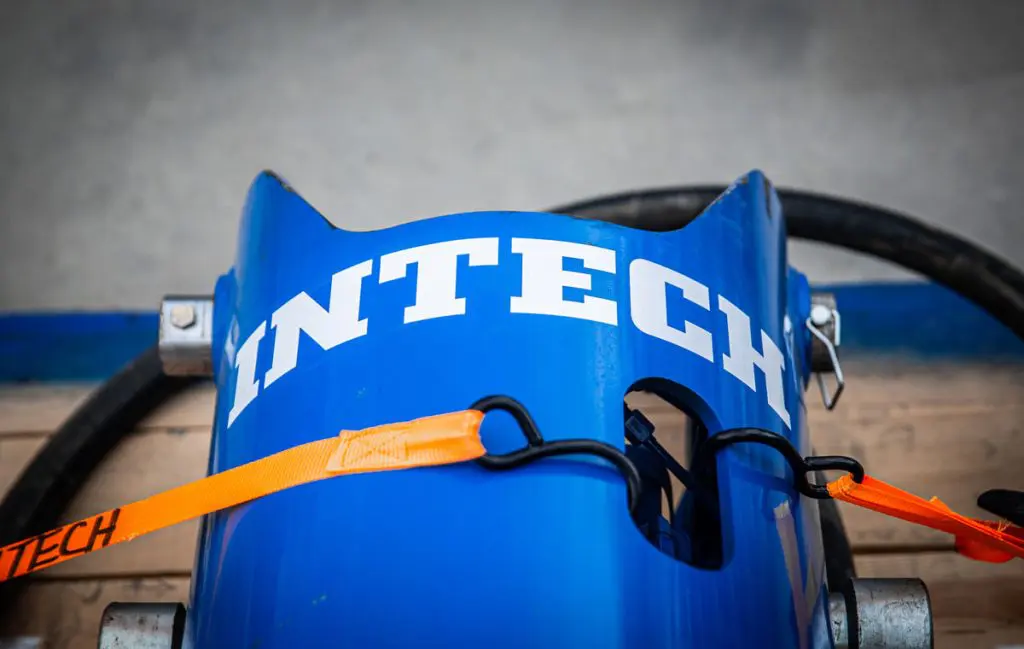

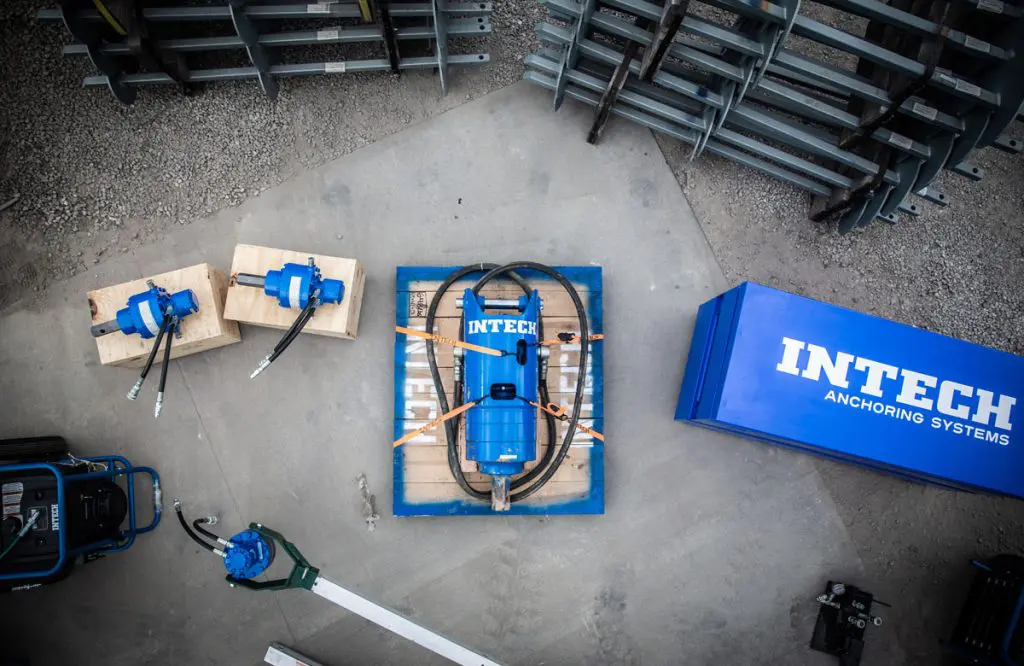

20K Helical Anchor Drive Head Kit

The 20,000 ft-lb anchor drive is the ideal size for larger helical projects up to 2” square shaft or 3.5” round shaft material. The drive head comes plumbed with quick connect hydraulic fittings to attach to the auxiliary port on your skid steer or mini excavator. The drive head can be rented with a universal skid steer plate attachment or adaptors for various models of mini-excavators are available. A Kelly bar adapter, wireless digital torque indicator, and installation tool are included with all rentals.

System Components:

12K Helical Anchor Drive Head Kit

The 12,000 ft-lb anchor drive is the standard size workhorse for installing helical anchors with a skid steer or mini excavator. This drive head can be used for up to 1.75” square shaft or 2.875” round shaft helical material. The drive head is plumbed with quick connect fittings to attach to the auxiliary port on your skid steer or mini excavator. The drive head can be rented with a universal skid steer plate attachment or adaptors for various models of mini-excavators are available. A Kelly bar adapter, wireless digital torque indicator, and installation tool are included with all rentals.

System Components:

Portable Helical Anchor Drive Head Kit

The “handheld” helical anchor drive allows for helical pile installations where space is limited such as inside of a basement. The drive head weighs approximately 90lbs and the reaction arm is another 80lbs. This unit can be operated with as small as a two-man crew to install helical anchors in basements or other locations with overhead limitations or limited access. The reaction arm must be braced against a solid surface such as a basement wall or floor to provide resistance against the 7,000 ft-lb of potential torque that this tool can achieve. The kit comes complete with a foot control valve, hoses, and hydraulic power pack.

System Components:

Anchor Drives

Intech Anchoring is an authorized equipment distributor offering sales and support for the most trusted helical drive head manufacturers including Eskridge, Digga, and Pro-Dig. Single-speed and dual-speed drives available with torque ranges from 2500 ft-lbs up to 360,000 ft-lbs.

Anchor Drive Equipment Accessories

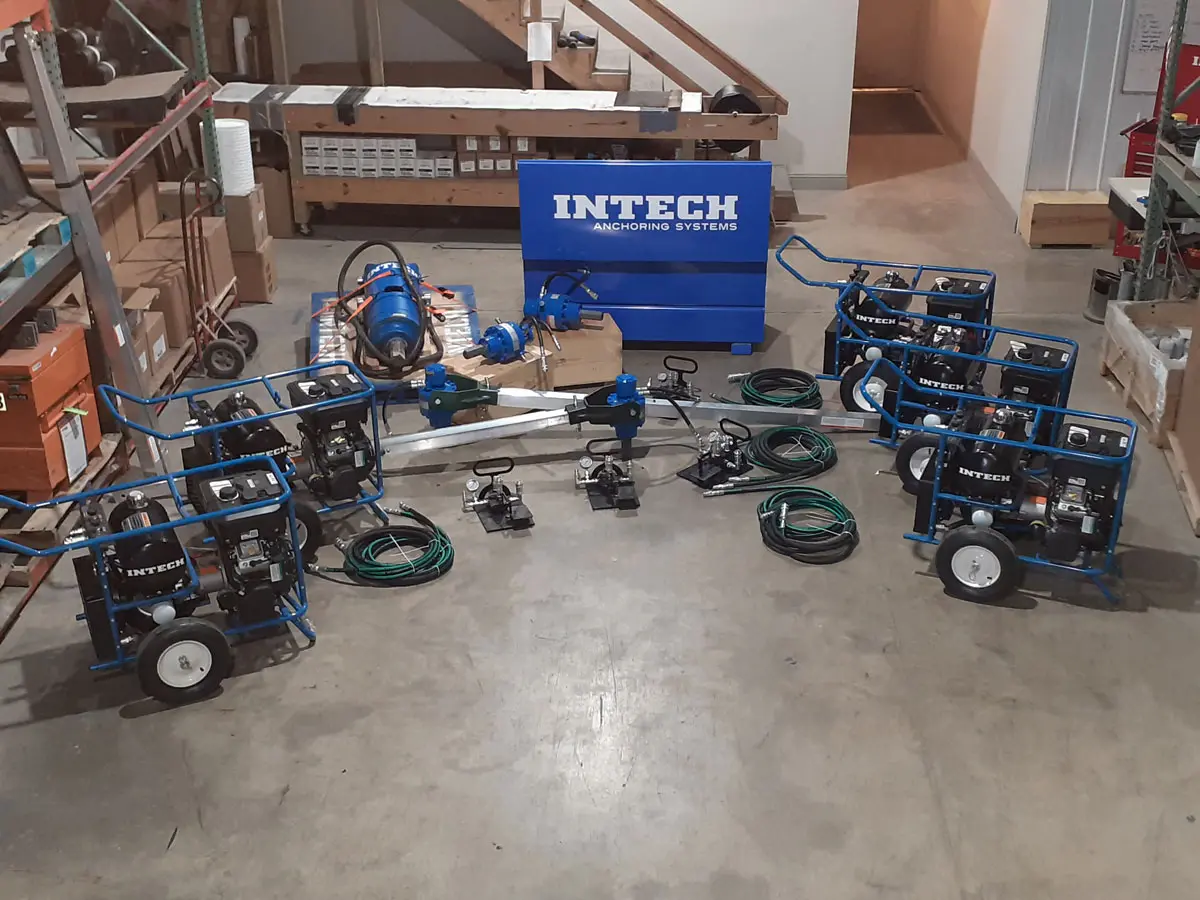

Portable Anchor Installation Equipment for Instant Foundations

For most shaft-driven helical screw foundation systems, these compact drivers get into areas where large equipment cannot go or is impractical. The operator does not need to resist the torque generated by anchor installation. Countertorque transmits through a torque bar from the drive head to the earth or other restraint. This frees the operator for the task of guiding the anchor path and makes the system easy to install.

Built-in bypass valve limits output to 2,500 ft-lb maximum, two-way foot pedal gives operator direct control over drive and reverse directions, and hoses (two 12 ft. and two 25 ft.) come with quick couplers for all hydraulic connections from power supply to foot control to anchor drive head. Pivoting drive-head yoke connects with a bent-arm pin to square-tubular torque bar that telescopes from 8 to 10 feet as needed.

Intech Anchoring Understands Your Hurdles

Our team is always working toward providing competitive pricing and rates, but we understand that equipment like this can be a substantial investment. We want to be sure that you get the most out of your investment. We are always willing to work with our partners and have flexibility when it comes to your budgetary limitations. Our convenient rental programs allow you to try a piece of equipment before you commit to the full purchase price. Often you can apply some of your rental fees to the overall equipment purchase.

Intech Anchoring is more than just a low-cost provider. We have built our business to be adaptable to the needs of our partners and make sure that they get the best performance for their investment. We offer a full line of rental equipment that comes with the same promise of high performance.

Just let us know the details of your project’s needs and we will make recommendations based on our many years of experience. Our organization also has two stocking locations, which means two inventories to support your equipment needs.

To learn more about anchor drive equipment and for help in determining which Drive Head is right for your project, contact Intech Anchoring today.
