Foundation Underpinning With Helical Piles: Stabilize & Lift
Dependable Solution For Foundation Lifting & Stabilization
When a structure begins to show signs of settlement or instability, foundation underpinning provides a reliable way to restore safety and long-term performance. Intech Anchoring Systems supplies high-strength foundation underpinning products and equipment that deliver proven results for both residential and commercial applications. Our engineered helical pile underpinning systems offer a fast, non-invasive, and cost-effective way to stabilize and lift foundations without extensive excavation or disruption to the property.
Call 844-244-7319 to discuss foundation underpinning solutions with our technical experts today.
What Is Foundation Underpinning?
Foundation underpinning strengthens or stabilizes an existing structure by transferring its load to deeper, more stable soil or bedrock layers. This process is essential when original foundation soils fail to support the structure due to poor compaction, soil erosion, or changes in groundwater conditions.
Intech Anchoring Systems provides helical pile underpinning systems designed to resist both tension and compression forces. These systems use steel helical piers, or resistance (push) piers, that are hydraulically advanced into the ground to a load-bearing stratum, where they support or lift the foundation back to its original elevation. Because installation requires minimal excavation, underpinning can be performed quickly and with minimal disturbance to landscaping, walkways, or existing structures.
Helical Piers
Helical Underpinning Anchors from Intech Anchoring Systems are rated up to 100,000 pounds each. These are available in round or square shafts, manufactured from high-strength galvanized steel.
Resistance Piers
Resistance piers, also known as push piers or jacked piers are commonly used to remediate structural settlement. Resistance piers are hydraulically driven to competent load-bearing strata.
Benefits of Helical Pile Underpinning
Choosing a helical pile system for underpinning delivers advantages that make it ideal for a wide range of soil and project conditions.
- Quick installation: No curing time is required, allowing for immediate loading once piles are installed.
- Minimal disturbance: Compact equipment minimizes vibration and soil displacement.
- Predictable results: Torque correlation provides direct measurement of load capacity for engineering confidence.
- All-weather performance: Helical piles can be installed year-round, even in cold or wet environments.
- Long-term stability: Galvanized or epoxy-coated steel resists corrosion and ensures structural longevity.
By combining efficiency with engineered precision, helical underpinning systems outperform traditional concrete piers or mass excavation methods in speed, accuracy, and durability.
The Foundation Underpinning Installation Process
Every foundation repair project begins with an evaluation of the soil, structure, and load requirements. Once engineers determine the cause and extent of settlement, a custom underpinning plan is designed using appropriate pile types and configurations.
Installation typically involves the following steps:
- Preparation: Small excavations are made along the affected foundation to expose the footing.
- Helical pile installation: Using hydraulic drive motors, piles are advanced into the ground to the required torque value, confirming adequate bearing capacity.

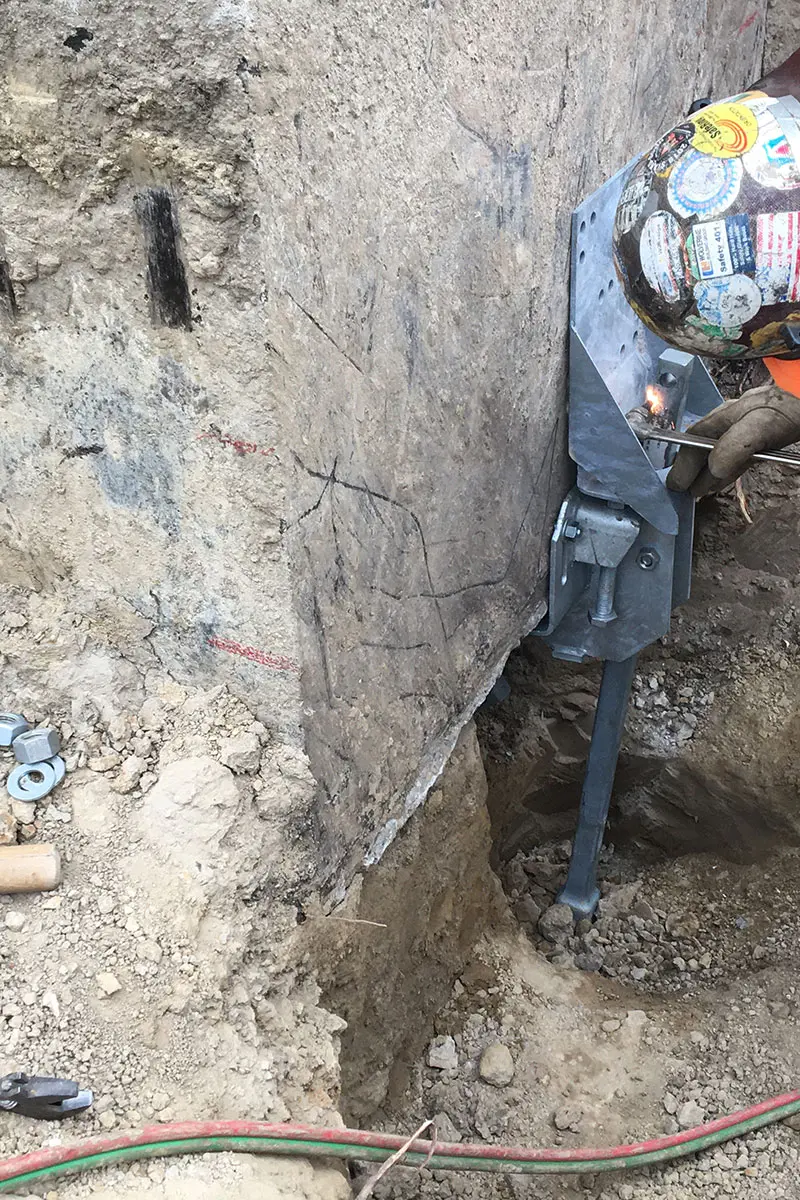

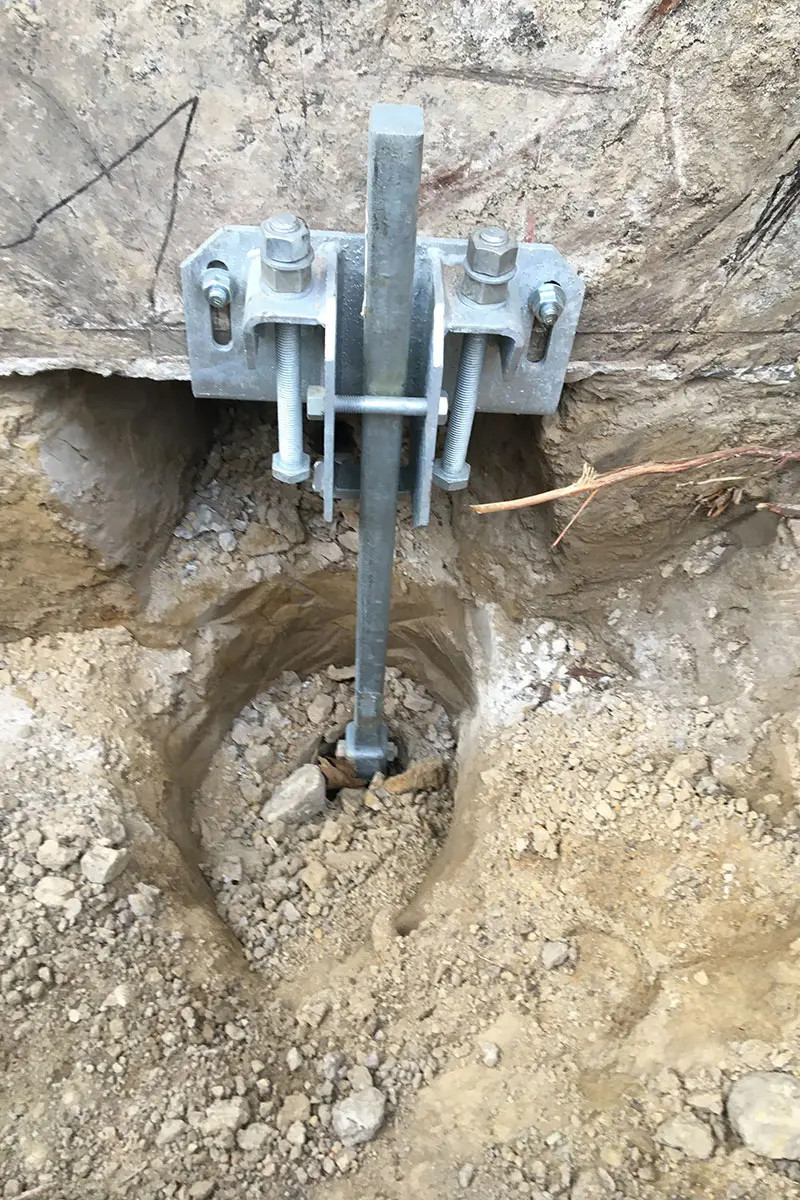

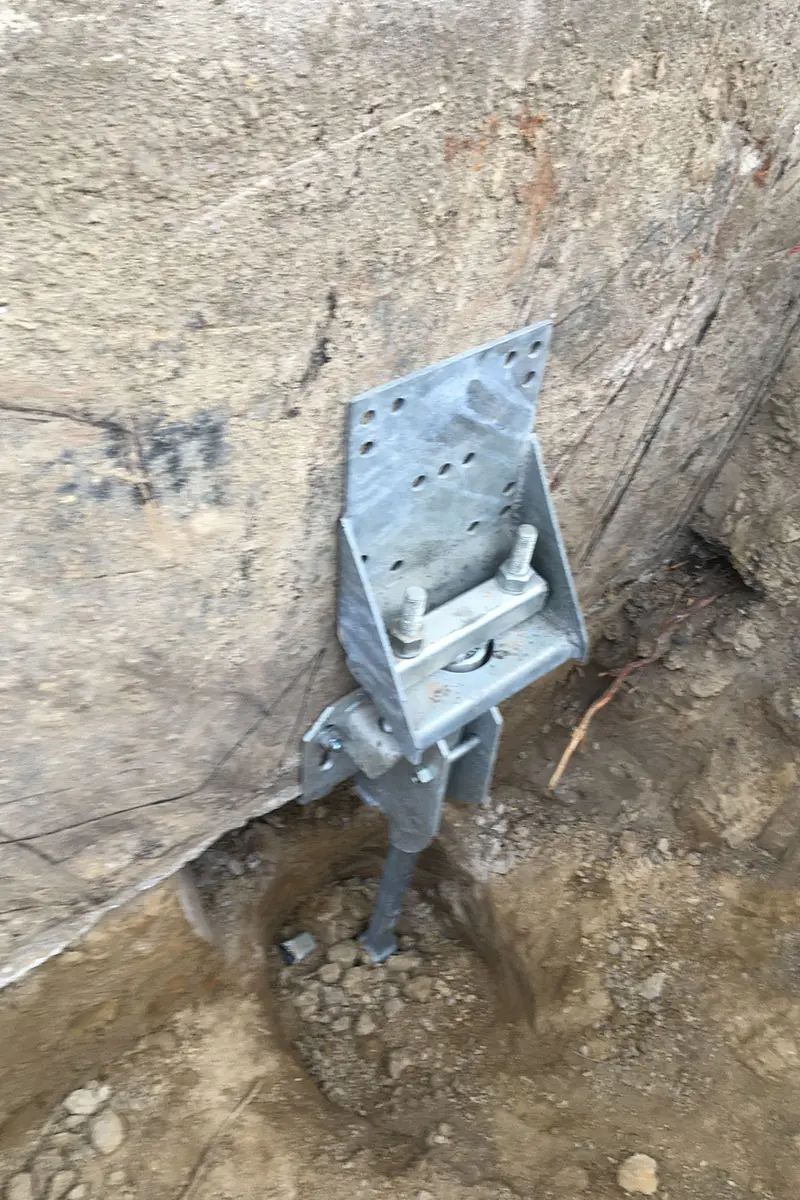

- Bracket placement: Adjustable underpinning brackets are attached to the foundation footing and connected to the installed piles.
- Load transfer or lift: The structure’s load is gradually transferred to the piles, stabilizing or lifting the foundation as needed.
- Final verification: Torque readings and elevations are recorded to ensure design performance criteria are met.
Because the process is precise and controlled, it minimizes disruption while providing measurable results and immediate structural stability.
Engineering Support and Project Assistance
Intech Anchoring Systems supports every stage of the underpinning process with materials, engineering, and equipment resources, including:
- Supply of helical piles, brackets, and torque monitoring tools
- Technical design and load calculation assistance
- Training and certification for installers and engineers
- Equipment rental and sales for hydraulic drive systems
- Project-specific consultation and field support
All of our materials are backed by straightforward pricing and professional engineering support to ensure dependable outcomes for every project.
Applications for Foundation Underpinning in Commercial and Residential Projects
Foundation underpinning serves as a structural solution in a wide range of commercial and residential scenarios, including:
- Remediation of foundation settlement or failure
- Support for additions to existing buildings
- Stabilization of structures affected by changing soil moisture
- Repair of damage caused by poor drainage or erosion
- Load transfer for heavier building expansions or retrofits
Helical pile underpinning is also suitable for specialized projects such as bridges, retaining walls, and industrial slabs, where conventional foundation methods may be impractical or cost-prohibitive.
Frequently Asked Questions About Foundation Underpinning
How do I know if a building needs underpinning?
Common signs include cracked walls, uneven floors, sticking doors or windows, and visible gaps between walls and ceilings. A structural evaluation can confirm whether settlement is occurring and determine the best repair approach.
How long does underpinning take?
Most residential underpinning projects are completed within a few days. Larger commercial projects may take longer depending on the number of piles, soil conditions, and access requirements.
Can underpinning lift a foundation back to its original level?
Yes. When conditions allow, hydraulic lifting can raise settled portions of a foundation back to near-original elevation while restoring stability and preventing future movement.
Is helical pile underpinning permanent?
Yes. Properly installed helical piles provide a permanent structural solution. With corrosion protection and quality materials, they offer decades of service life even in challenging environments.
What types of structures can be underpinned with helical piles?
Helical pile underpinning can be used on nearly any structure, including homes, commercial buildings, warehouses, and retaining walls. It is suitable for both light and heavy loads.
Why Contractors and Engineers Choose Intech Anchoring Systems
Intech Anchoring Systems is a trusted provider of geotechnical materials, foundation repair solutions, and equipment across North America. With decades of experience supporting contractors, engineers, and developers, we’ve built our reputation on reliability, technical expertise, and superior product performance.
Here’s why industry professionals choose Intech for underpinning systems:
- Comprehensive solutions: From design support to product supply and training, we provide complete project assistance.
- Engineering expertise: Our team works with design professionals to ensure every project meets required load capacities and safety standards.
- Quality materials: All products meet or exceed ASTM standards and undergo rigorous quality control.
- Fast availability: Extensive inventory and nationwide distribution minimize project delays.
- Straightforward Pricing: Transparent pricing ensures predictable project budgeting and no hidden costs.
Whether you’re addressing foundation settlement or stabilizing new construction, Intech Anchoring Systems delivers the proven systems and support you need to complete your project efficiently and confidently.
Strengthen and Stabilize with Intech Anchoring Systems
Foundation underpinning restores the integrity of structures and protects them from further settlement or damage. Intech Anchoring Systems provides industry-leading helical pile underpinning solutions engineered for lasting performance and ease of installation. Our team offers the experience, materials, and technical support needed to keep your project on time and within budget.
Call Intech Anchoring Systems today at 844-244-7319 to request a consultation or learn more about our foundation underpinning solutions.
