Limited Access Drills: TEI MP Equipment for Confined Spaces
Intech Anchoring Systems is proud to offer the TEI MP Drill, an exceptional limited access drill that pushes the boundaries of compactness and versatility. This drill is specifically designed to navigate the tightest of spaces where larger equipment cannot reach, making it ideal for projects with limited access.
The TEI MP Drill represents the smallest drill possible while still utilizing a feed system. Any smaller, and we would enter the realm of hand drills. Despite its small size, this drill is remarkably powerful and capable of handling a wide range of applications. Whether you require the installation of a 75 kip micropile, soil nails, rock bolts, coring, or hollow bars, the TEI MP Drill delivers reliable and efficient performance.
With its compact design, the TEI MP Drill excels in confined spaces that were once unimaginable for traditional drilling equipment. It allows access to areas that were previously considered inaccessible, providing a solution for projects with limited workspace.
Intech Anchoring Systems is committed to offering innovative and practical solutions, and the TEI MP Drill is a testament to that commitment. It combines maneuverability, power, and versatility, enabling successful installations even in the most challenging and restricted locations.
Click for available purchase options!

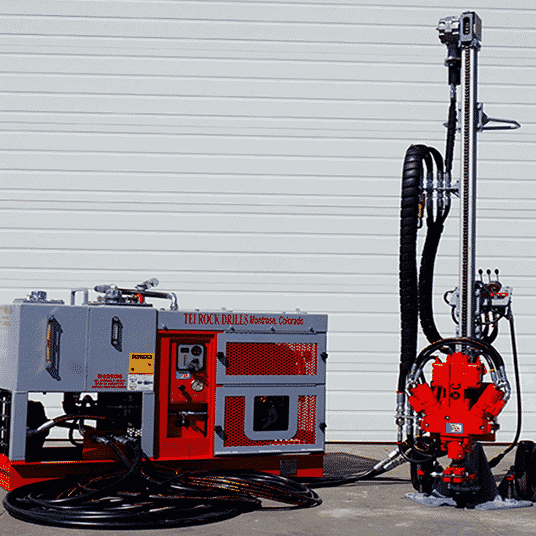

MP260Limited Access Hollow Bar Drill
Installs R32, R38, or T40 bar in 5 ft lengths only
Features
- Two power stroke settings allow precise control
over the energy and frequency of the percussion
system - Reversible rotation motors allow for effective
drilling and minimize the risk of jamming - Low profile helps to drill next to walls and to reach
into tight spaces - Available with a diesel hydraulic power pack
(DM360)
Specifications
- Pullback Force: 1500 lbf/6672 N
- Total Length: 101.5 in/2.57 m
- Drill Travel: 70.5 in/1.80 m
- Total Weight: 700 lbs/318 kgs

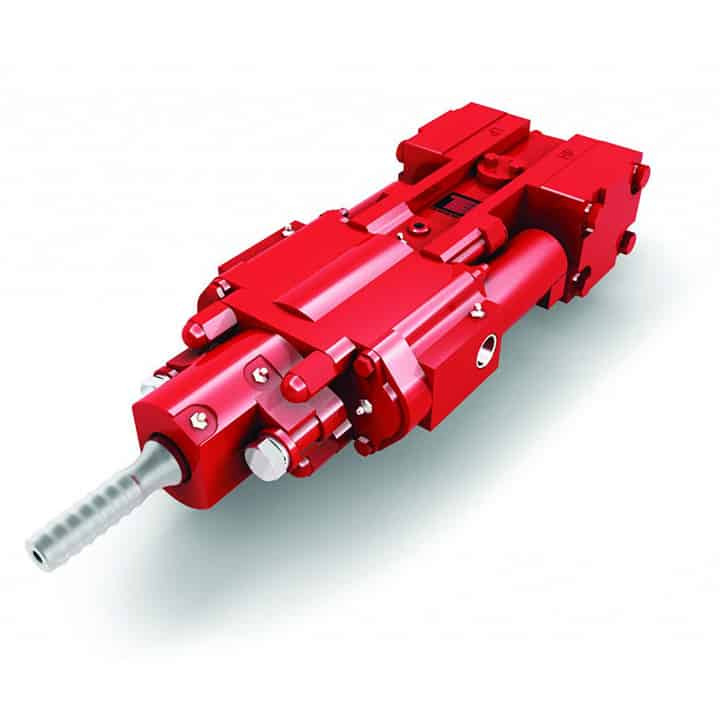

DRIFTER
TE260HT
Physical Characteristics
- Height: 18.04”
- Length: 21.01”
- Width: 3.96”
Rotation Specifications
- Rotation Torque: 1000 lbf-ft
- Rotation Flow: 10-20 gpm
- Rotation Pressure: 2250 psi
- Weight: 180 lb
- Speed: 200 rpm
Flushing Specifications
- Water Pressure: 105psi
- Water Flow: 7 gpm
- Air Pressure: 110 psi
- Air Flow: 179 cfm
Hammer Specifications
- Output Power: 13 hp
- Hammer Flow: 18 gpm
- Hammer Pressure: 2250 psi
- Hammer Frequency: 4200 bpm

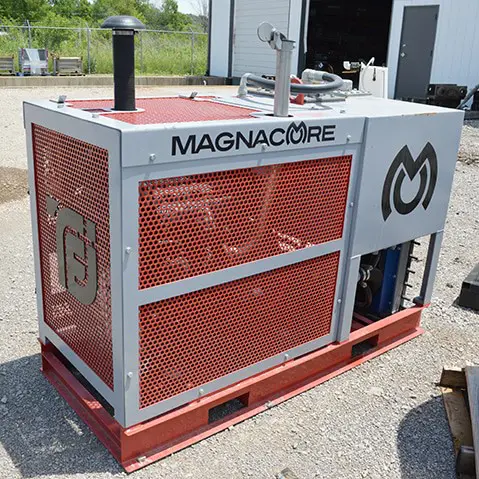

DM360
Diesel Power Unit
The DM360 is a heavy-duty hydraulic power pack built to supply power for drifters and rotary heads. Each power unit has a solid steel frame, central pick point, fork pockets for the lift, and the fuel capacity to remain in use for 8 to 10 hours.
Specifications
- Flow: 35 gpm (132.5 lpm)
- Pressure: 2250 psi (155 bar)
- Power: 77.2 hp (57.6 kW)
- Engine: Deutz TD 2011 L4 I (Tier 4i)
- Turbo: Yes
- Fuel: Diesel
- Fuel Capacity: 41 gal (155 l)
- Fuel Consumption: 4.1 gal/hr (15.5 l/hr)
- Run Time: 10 hours
- Hydraulic Pump: Variable displacement, load sensing
- Cooling Capacity: 17 hp (12.7 kW)
- Hydraulic Tank: 32 gal (121 l)
- Hydraulic Filter: 10 microns
- Voltage: 12 vdc
- Hydraulic Oil: ISO 32-68
- Dry Weight: 1682 lbs (763 kg)
- Wet Weight: 2202 lbs (999 kg)
