Excavator-Mounted Rock Drills & Feed Systems for Micropiles
RENT OR PURCHASE THE EXRH10X FEED SYSTEM

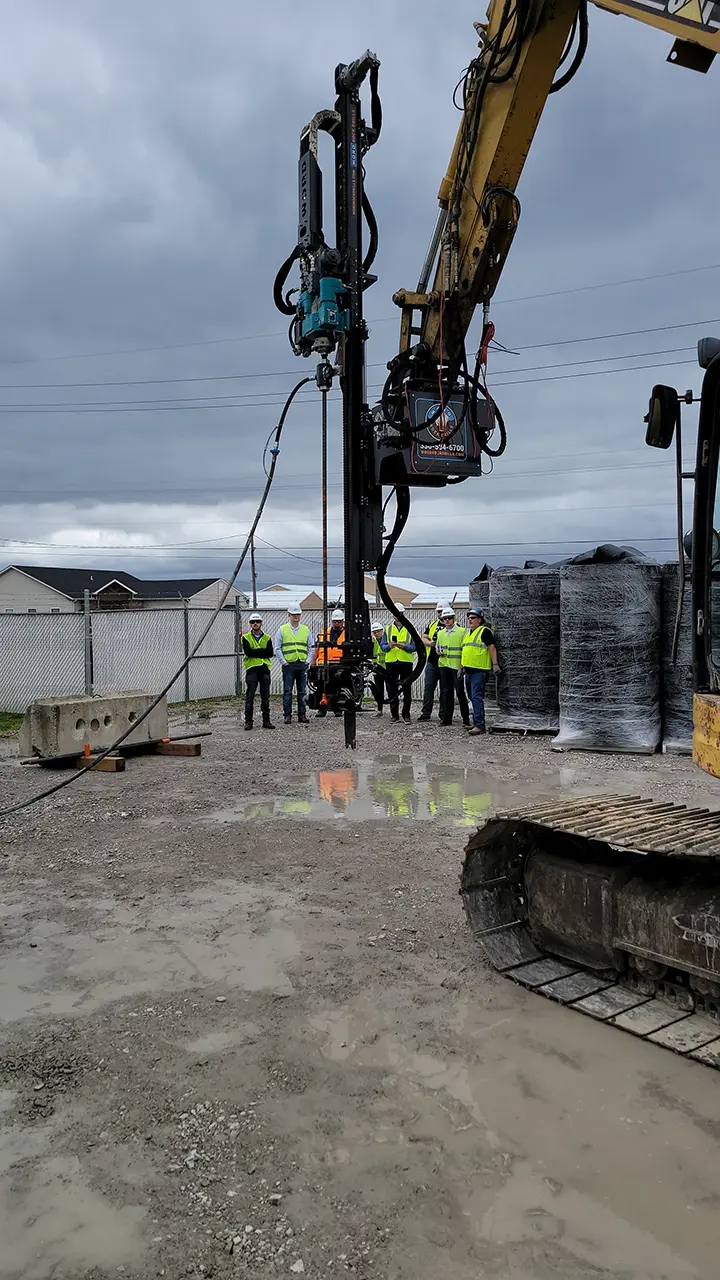

Turn Your Excavator Into A High-Capacity Drilling Platform
When demanding ground conditions or tight project schedules call for maximum drilling power, flexibility, and precision, Intech Anchoring Systems’ excavator-mounted feed systems deliver the performance contractors depend on. Designed for hydraulic excavators, these WORD Rock Drill systems provide the reach, stability, and torque needed for installing hollow bar anchors, micropiles, and soil nails in demanding ground conditions.
Mounting directly to the excavator boom lets operators reposition between bore locations and change drilling angles without mobilizing a separate drill rig, a strong fit for slope stabilization, foundation support, retaining structures, and earth retention work.
Engineered For Reach, Positioning & Higher-Capacity Drilling
The EXRH10X pairs a WORD feed system with a Eurodrill RH10X hydraulic rotary-percussive drill. Available to rent or buy.

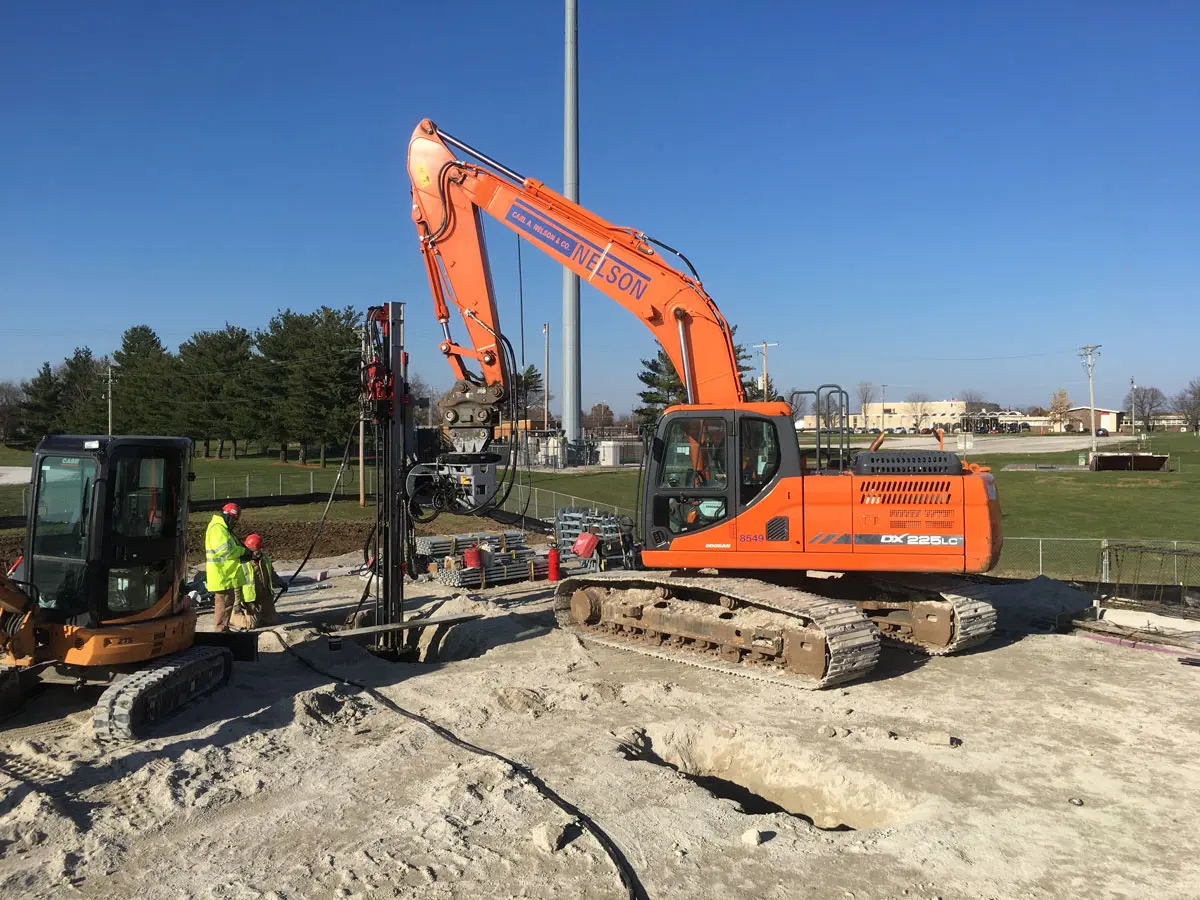

Excavator-mounted feed systems make sense when the project has enough operating room for a larger carrier and drilling productivity, positioning, or reach takes priority. The system uses the excavator’s auxiliary hydraulic circuit, so crews get high-capacity drilling without mobilizing a separate rig, and the HPH360 positioner gives operators 360-degree lateral positioning at each bore location.
Each system ships built for durability with heavy-duty rails, a two-motor rotary-percussive drifter, and a modular design that keeps attachment, setup, and maintenance straightforward in the field.
Common applications include:
- Hollow bar micropiles & anchors: Install self-drilling bars for foundation support and difficult subsurface conditions.
- Soil nails & tiebacks: Drill at required angles along slopes, cuts, and retaining structures.
- Slope stabilization: Reposition efficiently along grades and difficult terrain without a standalone drill rig.
- Retaining walls & shoring: Anchor bridge abutments, retaining systems, and excavation support.
- Confined & restricted-access sites: Bring higher-capacity drilling to urban and limited-mobility sites where conventional rigs struggle to operate.
EXRH10X Overview
| Mounting | 80mm and 90mm 2-pin excavator adapters (fits most excavator models) |
| Feed system | WD3010H hydraulic chain feed |
| Pull capacity | 7,000 lbs |
| Positioning | HPH360 positioner, 360-degree lateral positioning |
| Rock drill | Eurodrill RH10X hydraulic rotary-percussive drill, two-motor system |
| Controls | RC105 radio remote, proportional controls, manual centralizer |
| Minimum hydraulic requirement | 55 GPM at 3,000 PSI |
| Maximum bar size | Up to T103 |
| Maximum bit diameter | Up to 8 inches |
Physical Characteristics
| Transport length | 21 ft |
| Total length (end of feed to stinger) | 21 ft |
| Feed length | 210″ |
| Width | 60″ |
| Height | 60″ |
| Feed system weight | 5,000 lbs |
| Shipping weight | 6,000 lbs |
Drifter Specifications — Eurodrill RH10X
| Rotation torque | 11 kNm |
| Rotation speed | 70–214 rpm |
| Striker bar thread | H55LH |
| Grout shanks | Available up to T103 |
Excavator compatibility should be checked before scheduling: the system requires sufficient auxiliary hydraulic flow, case drain, and lift capacity. The energy chain extends beyond the 21′ feed length whenever the drifter travels up the feed, so this should factor into jobsite clearance planning.
Excavator-Mounted System For Rent

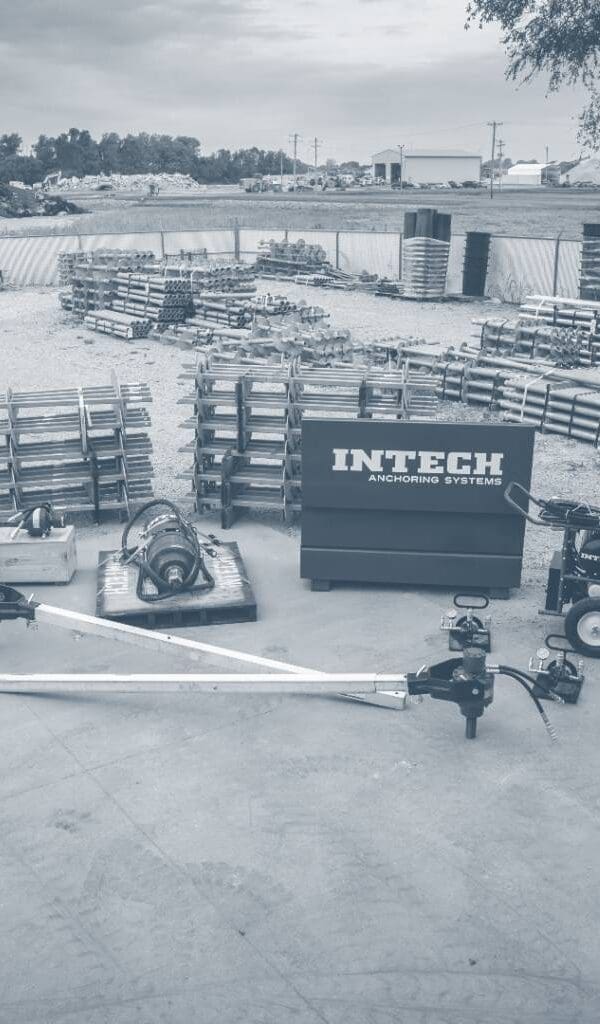

Intech’s rental fleet gives you a job-ready EXRH10X feed system on demand, with every unit available for purchase if it earns a permanent spot on your fleet. Rentals ship with the accessories needed to get drilling started without the guesswork.
All Rentals Include
- Hydraulic clamp and breaker
- Angle indication via radio remote display
- Line oiler
- Energy chain for hose handling
- Nitrogen charge kit
- Custom shipping platform with job box for accessories
Excavator-Mounted System For Purchase
For contractors drilling regularly, Intech also offers excavator drifters and accessories for purchase, including a second rotator for X/Y positioning and advanced 16-function radio controls. As a proven WORD Rock Drills dealer, Intech brings the calibration, technical support, and product knowledge that come from supplying this equipment alongside the Magnacore hollow bar product line.
Equipment Rental Process
Flexible Delivery Options
- Request Equipment: Submit a request online or contact our team directly to select the right equipment and tooling for your project timeline.
- Coordinate Delivery: Pick up from our Intech yard or let us manage the logistics. We deliver directly to active jobsites, yards, or staging areas nationwide.
- Get to Work: Every rental arrives fully inspected, serviced, and equipped with all necessary operating accessories so your crew can start working immediately.
