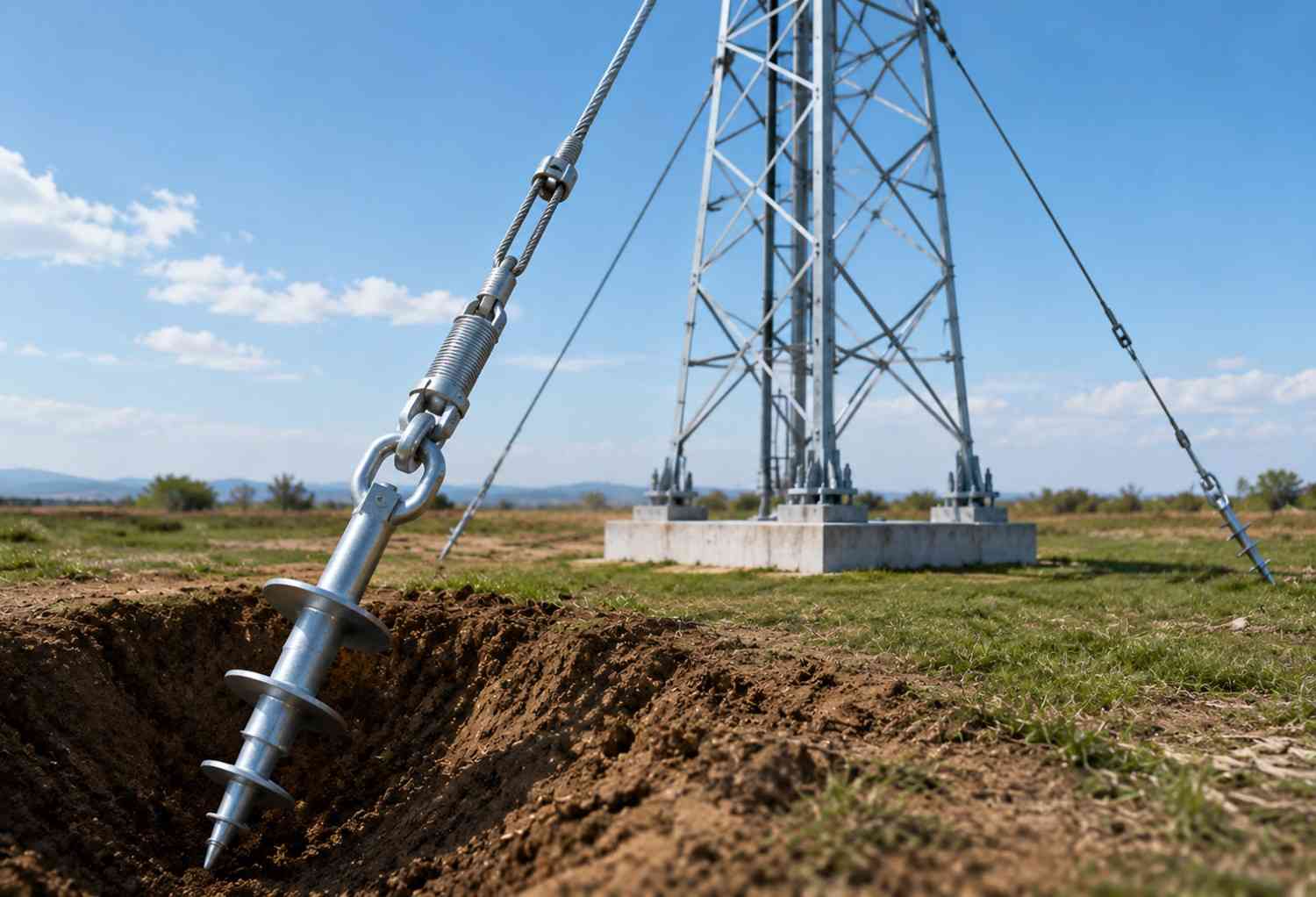

Helical Guy Anchor Systems for Towers & Utility Structures
Guy-supported towers, utility poles, and transmission structures live or die by the anchors holding their guy wires in tension, and the right anchor specification keeps a structure standing through wind events, ice loading, and decades of cyclic stress. Intech Anchoring Systems supplies helical guy anchor systems for towers and utility structures that telecom contractors and utility engineers depend on.
Our IDEAL Helical Anchors install in hours rather than days, deliver immediate load capacity, and skip the excavation, dewatering, and concrete cure time that traditional anchorage methods demand.
Call Intech Anchoring Systems at (888) 458-8904 today to discuss your helical guy anchor project.
Helical Anchorage That Replaces Concrete Deadmen
Traditional guy wire anchorage relies on concrete deadmen poured into excavated pits, a method that generates spoils, demands cure time before any load can be applied, and slows down by orders of magnitude when soil collapses, when groundwater shows up, or when the site sits somewhere remote.
IDEAL helical anchors replace that approach with a screw-in steel shaft and helical bearing plates that develop full capacity the moment installation torque hits the design value. Crews finish anchor sets in a fraction of the time, remove no soil from the site, and move guy wire tensioning into the same shift rather than waiting on concrete.
Streamlining Guy Anchoring Solutions
1IDEAL Helical Anchors provide a superior alternative to traditional methods of constructing guy anchorage, offering numerous benefits in terms of labor, materials, equipment, and time conservation. These innovative anchors outperform concrete deadmen and are not affected by adverse weather conditions or high-water tables during installation. They eliminate the need for excavation, concrete curing time, and the production of spoils, making them a more efficient and cost-effective solution.
Learn more about Helical Tieback Anchors!
- Quick Installation Process: IDEAL Helical Anchors significantly reduce installation time, saving valuable time on your project. The streamlined installation process allows for efficient anchorage, minimizing project delays and improving overall productivity.
- Minimal Environmental Impact: With IDEAL Helical Anchors, there is no excavation or spoils generated, minimizing the environmental impact, and simplifying the construction process. This environmentally friendly approach reduces disturbance to the surrounding area and ensures a more sustainable construction practice.
- Immediate Proof-Testing & Loading Capability: IDEAL Helical Anchors offer immediate proof testing and loading capability. This allows for on-the-spot evaluation of anchor performance and ensures the stability and reliability of the guy anchorage system.
- Accelerated Construction Timeline: By eliminating the waiting time for concrete to cure, IDEAL Helical Anchors further accelerate the construction timeline. This time-saving advantage enables faster project completion, reducing overall costs and improving project efficiency.
- Elimination of Dewatering: IDEAL Helical Anchors eliminate the need for dewatering, reducing the complexity and time requirements of the installation.
IDEAL Helical Anchor Products We Supply
Intech maintains inventory across the helical anchor configurations used in guy anchorage, with engineering support available on every product line. The links below lead to detailed product information.
- IDEAL helical anchors: The core product line for guy anchorage applications, with shaft sizes and helix configurations matched to required holding capacity and soil parameters.
- Helical piles and anchors parent line: Full helical product family including configurations adaptable to specialized guy anchor requirements.
- Anchoring and tiedown systems: Broader anchor and tiedown inventory covering applications adjacent to or combined with guy anchorage work.
- Equipment rental and purchase: Installation equipment available on a rental or purchase basis, supporting crews that may not maintain dedicated helical installation rigs.
Frequently Asked Questions About Helical Guy Anchor Systems
How do helical guy anchors compare to concrete deadmen on cost?
For most projects, helical anchors come out lower on total installed cost once you account for excavation labor, concrete and rebar, cure time, dewatering when groundwater is present, and spoils disposal. The largest cost differences show up on remote sites, sites with poor soil conditions, and sites with tight schedules.
Can helical anchors be load tested in the field?
Yes. Helical anchors deliver immediate load capacity and accept proof testing, performance testing, or torque correlation methods on the day of installation. This contrasts sharply with concrete anchorage, which requires cure time before any load can be applied.
What soil conditions are appropriate for helical guy anchors?
Helical anchors perform reliably in most cohesive and granular soils, with installation torque providing real-time feedback on capacity development. Difficult conditions like running sands, dense gravel, or shallow rock may warrant specialized configurations or pre-installation evaluation, which our engineering team handles during specification.
How deep do helical guy anchors typically install?
Depth depends on required capacity and soil conditions, but most utility and tower applications terminate between 10 and 30 feet below grade. High-capacity applications in marginal soils can extend deeper, with extension shafts coupling to reach competent bearing layers.
Does Intech provide installation training for helical guy anchor crews?
Yes. We offer installer certification, hollow bar training programs, and on-site lunch and learns covering helical anchor installation methods, torque correlation, and quality control practices.
Why Telecom, Utility & Tower Contractors Choose Intech
Tower and utility work runs on schedule discipline. Crews mobilize, structures get erected, lines get strung, and any delay at the anchorage stage cascades through the rest of the build. Our extensive helical anchor inventory keeps lead times short, and our willingness to engineer the specifics rather than push generic catalog products means the anchors arriving on site actually fit the load and soil parameters the project demands.
Since 1998, we’ve supplied helical anchorage and engineering support to contractors and utilities across the country, building a reputation for product availability, technical accuracy, and dependable delivery. Active membership in the ADSC International Association of Foundation Drilling, the Deep Foundations Institute, and ASCE keeps our team current on the standards driving anchorage work forward.
Contact Us About Your Helical Guy Anchor Project Today
Concrete deadmen worked for decades because nothing better existed, but helical anchors deliver the same long-term holding capacity in a fraction of the installation time, with none of the spoils, cure delays, or dewatering complications that slow traditional methods. Intech Anchoring Systems helps tower contractors, telecom builders, electric utility crews, and transmission line teams put guy anchors in the ground faster, with engineering input where it matters and inventory ready when crews are.
Call Intech Anchoring Systems at (888) 458-8904 today to discuss your helical guy anchor project.
